| Technical data | |
|---|---|
| Dimensions ØA x B x H | 1.100 x 1.310 x h. 2.860 mm |
| Pressure drops | 1.000 Pa |
| Maximum vacuum | 40.000 Pa |
| Inlet Ø | Ø 150 mm |
| Outlet Ø | Ø 150 mm |
| Diameter and volume of collection bins | Ø 525 mm of 100 L |
| Filtering elements | |
| Cartridge no. | 2 |
| Cartridge dimensions | Ø 325, h = 600 mm |
| Filtering surface | 20 m2 |
| Filtering fabric | Polyester |
| Cleaning of the filtering elements | |
| Cleaning system | Reverse jet cleaning by differential pressure gauge |
| Number of valves | 2 |
| General characteristics | |

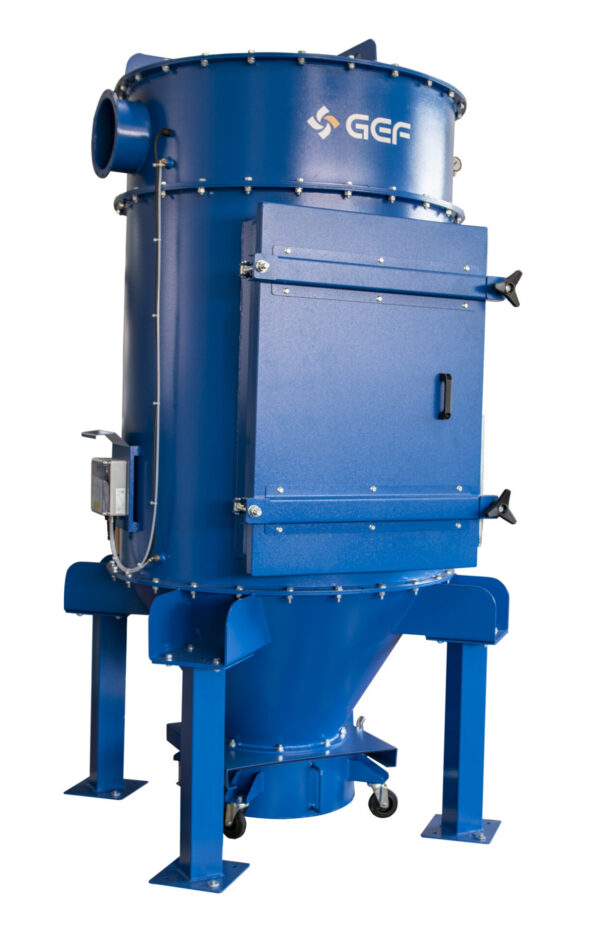

| Dust collector made of 3 mm thick metal sheet | |
| Transported in 2 parts easily assembled. | |
| For handling this filter during loading and unloading it is necessary to use a crane. | |
| FILTERING MEDIA | POLYESTER, ANTISTATIC POLYESTER |
|---|---|
| DISCHARGE | BIN, BIN WITH BIN BALANCE, LOOSE FLANGE, ROTARY VALVE |
