Filter Systems – GCC Atex

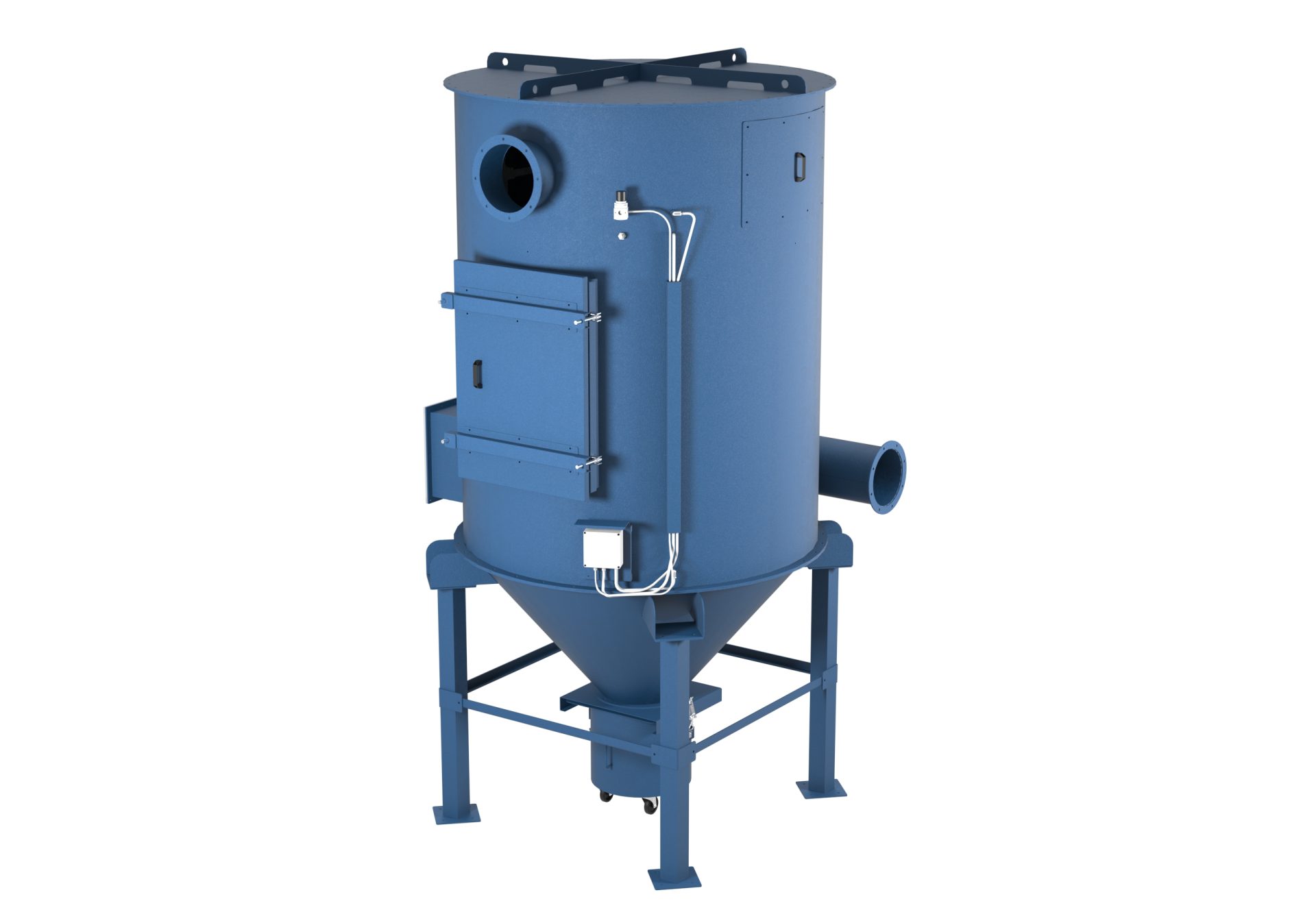

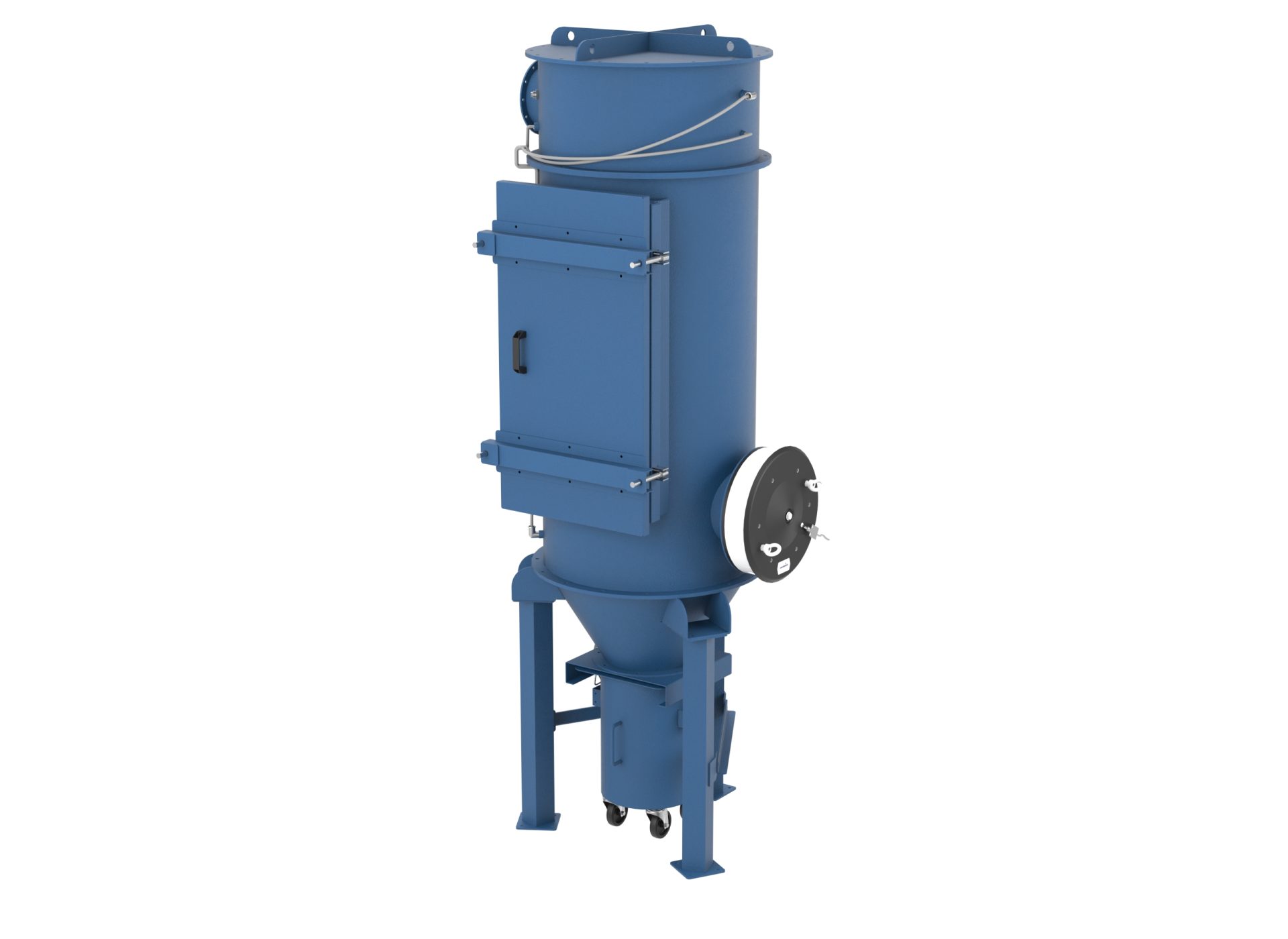

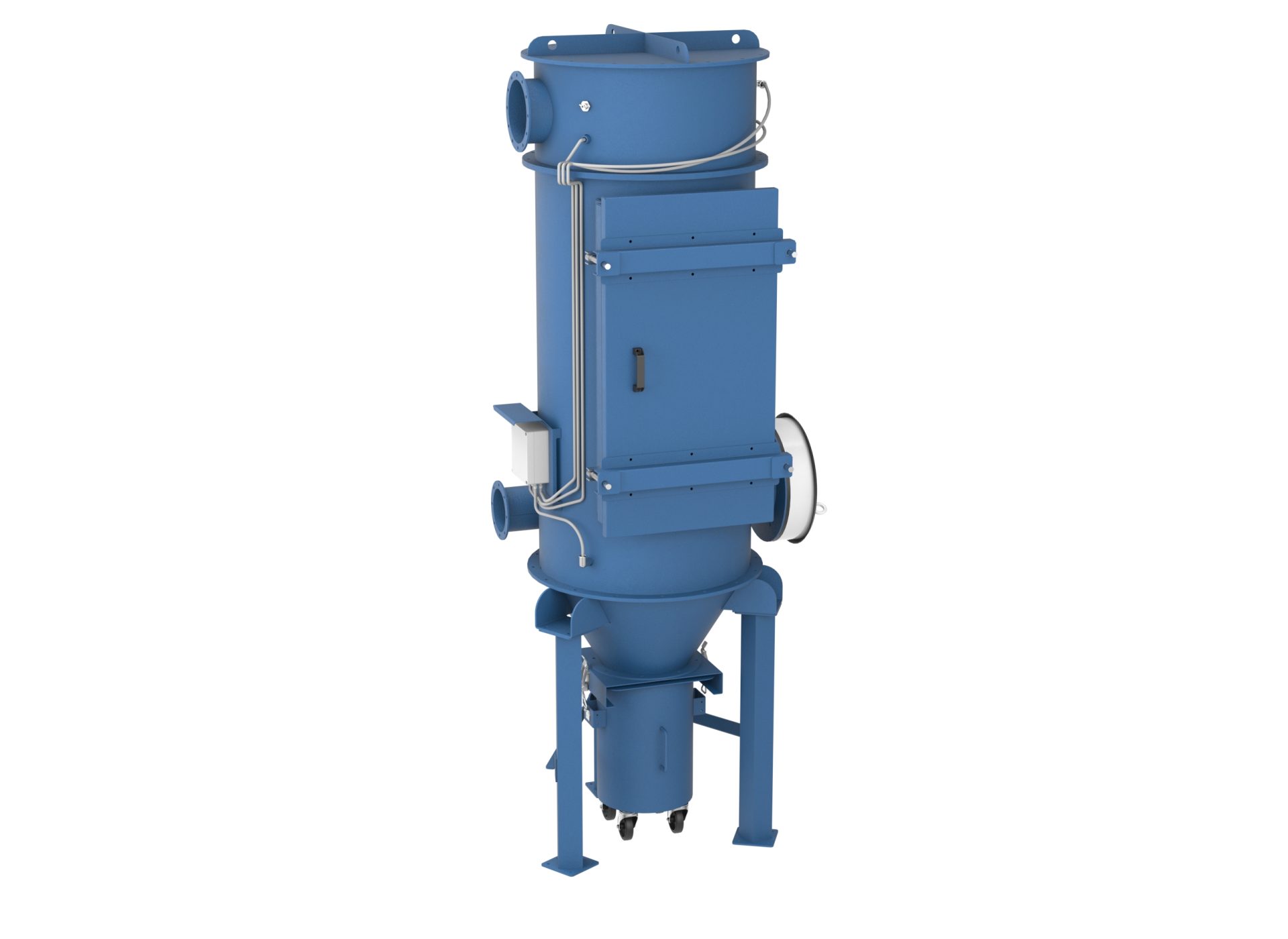

GCC ATEX are the cylindrical series of cartridges filters with reverse jet cleaning for vacuum up to 40.000 Pa, designed to handle explosive dust ST1 class and certified ATEX for zone 22 3D.

GCC ATEX filters are available with 2 different cartridges heights:

  • 600 mm
  • 1.200 mm

GCC ATEX are the upgrade of the non-explosive dust series. In addition to the classic GCC, they are complete of:

  • Explosion relief panel/s placed at a proper distance from filtering elements as per normative UNI EN 14491
  • ATEX components
  • Antistatic elements
Technical Sheet





Atex

Standard Version Specifications:
  • Filtering surface from 20 to 240 m2
  • ATEX components and antistatic elements
  • Automatic reverse jet cleaning
  • Maximum vacuum 40.000 Pa
  • Maximum temperature 80°C
Standard configurations:
  • Cartridges h. 600 mm
  • Cartridges h. 1.200 mm
Accessories:
  • ATEX fan on top
  • Control panel with/or inverter
  • ATEX Rotary valve
  • Flameless vent
Materials and finish:
  • Stainless steel
  • Painted



Applications:

food welding and cutting
