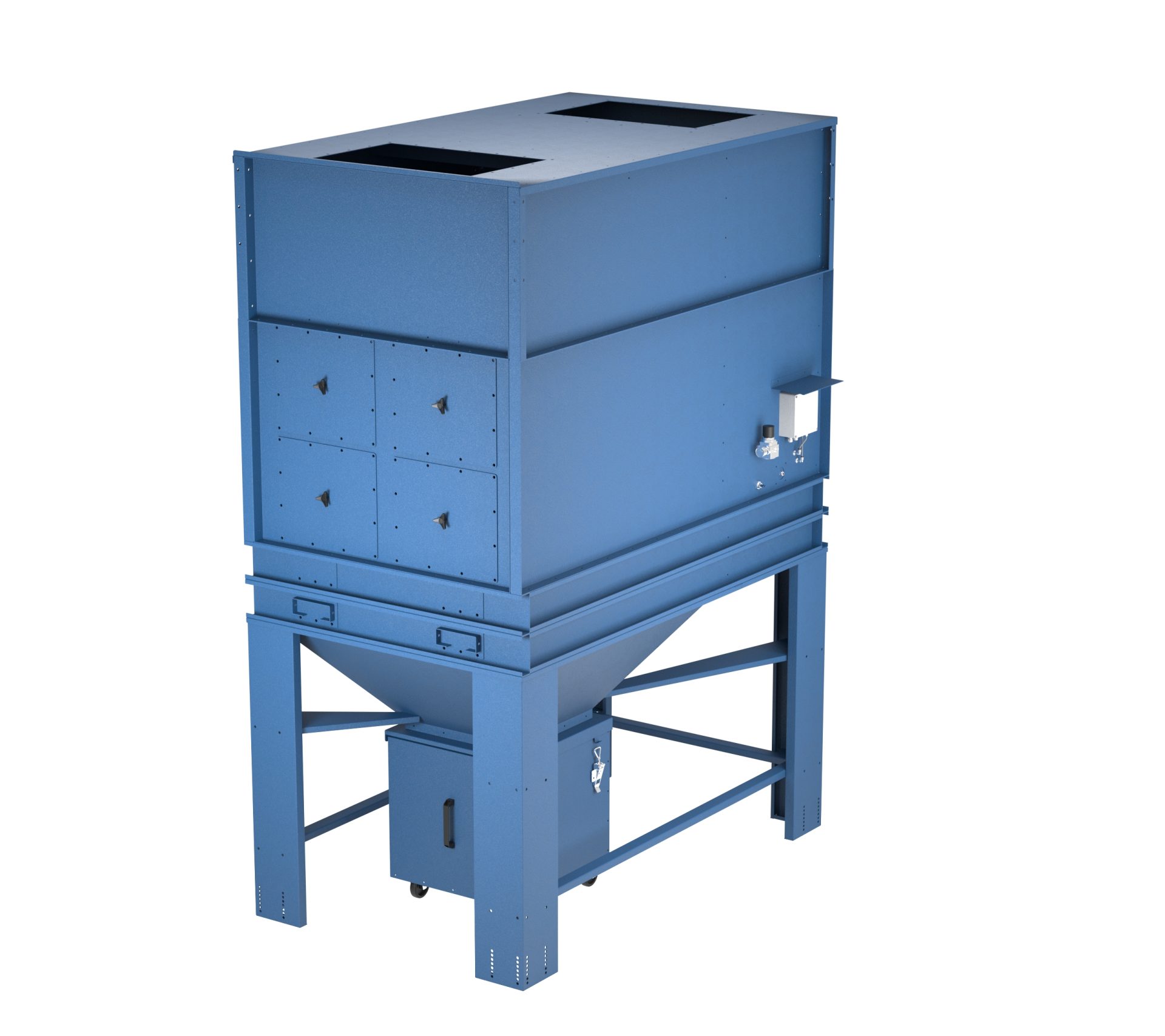

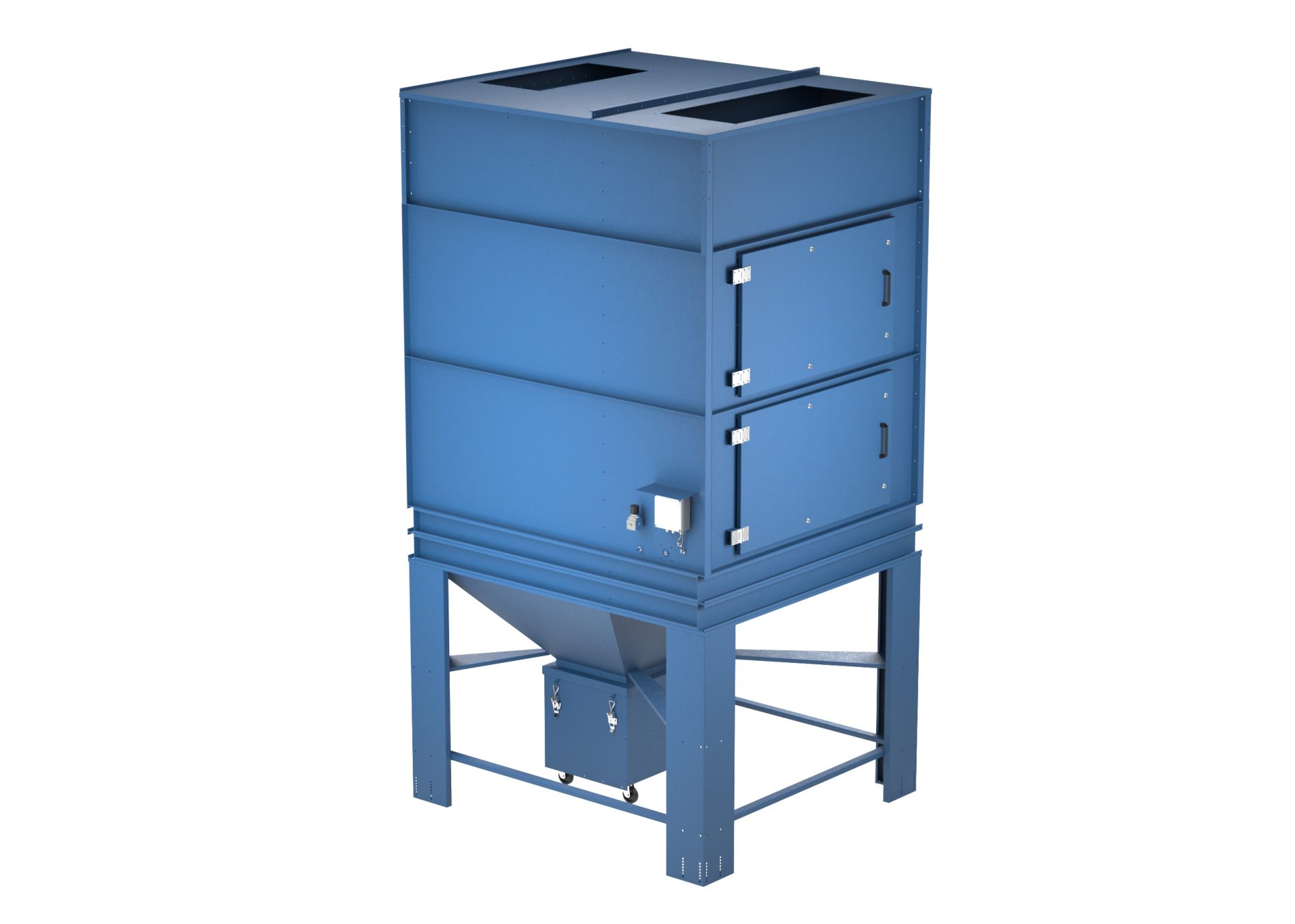

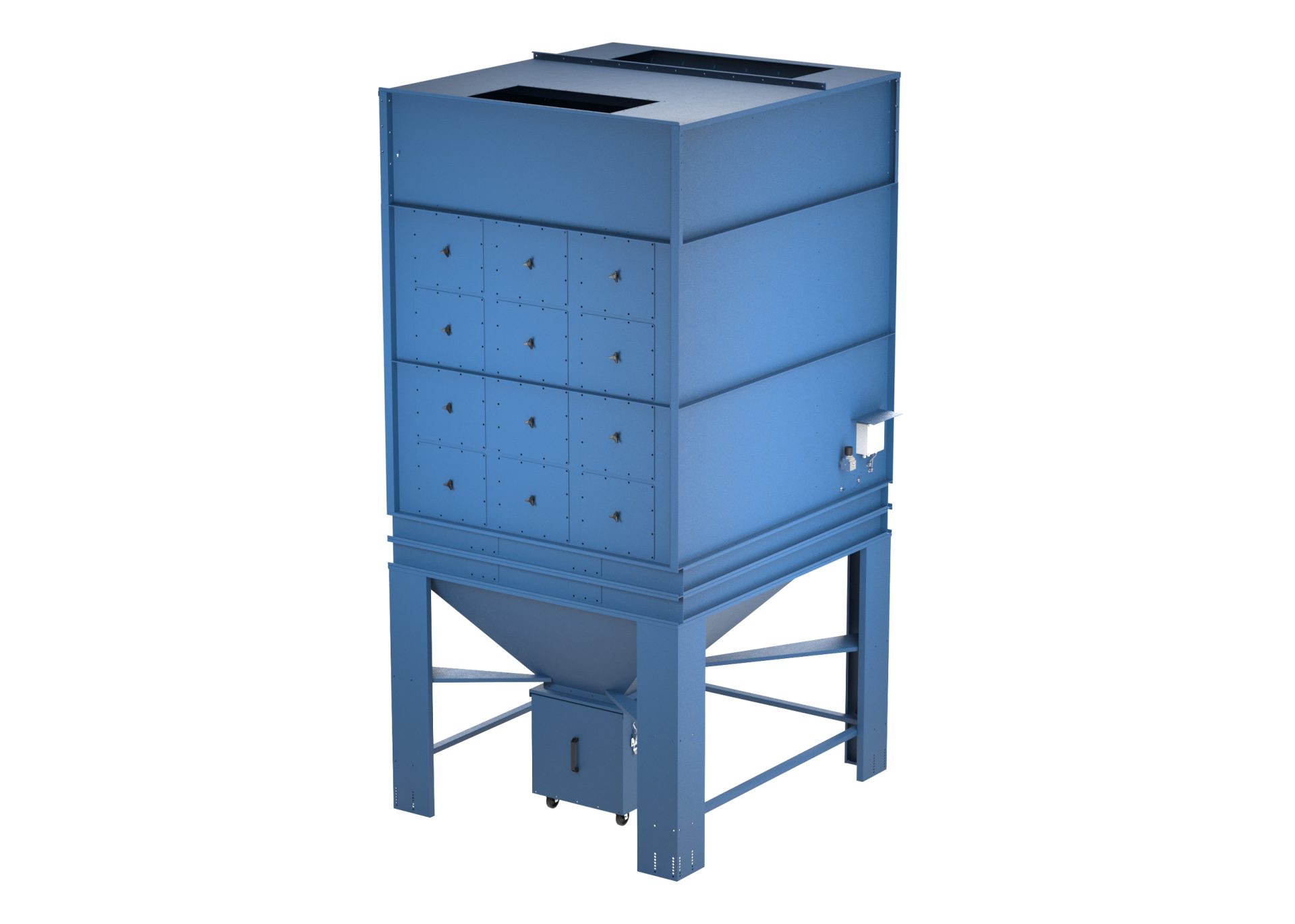

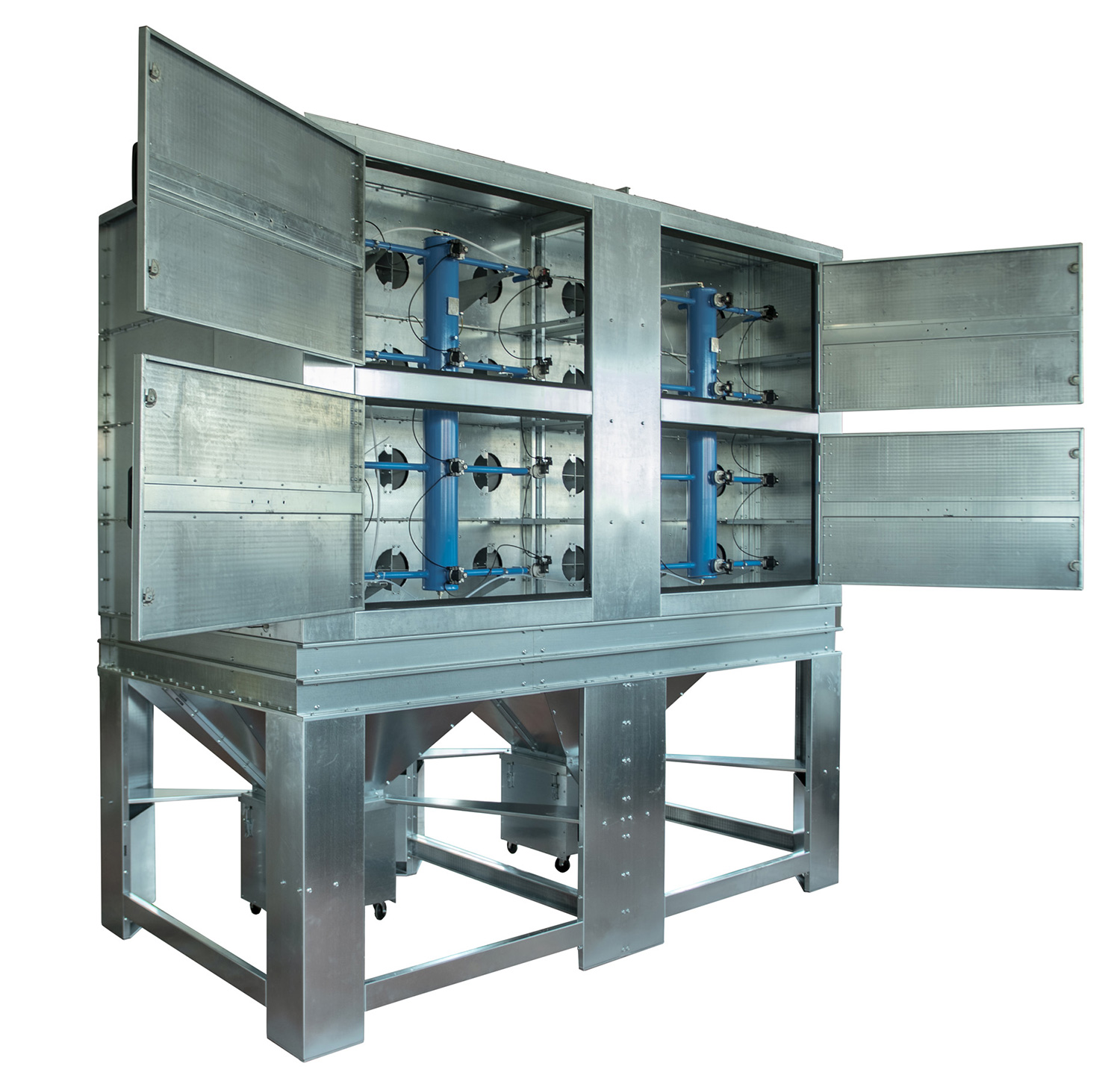

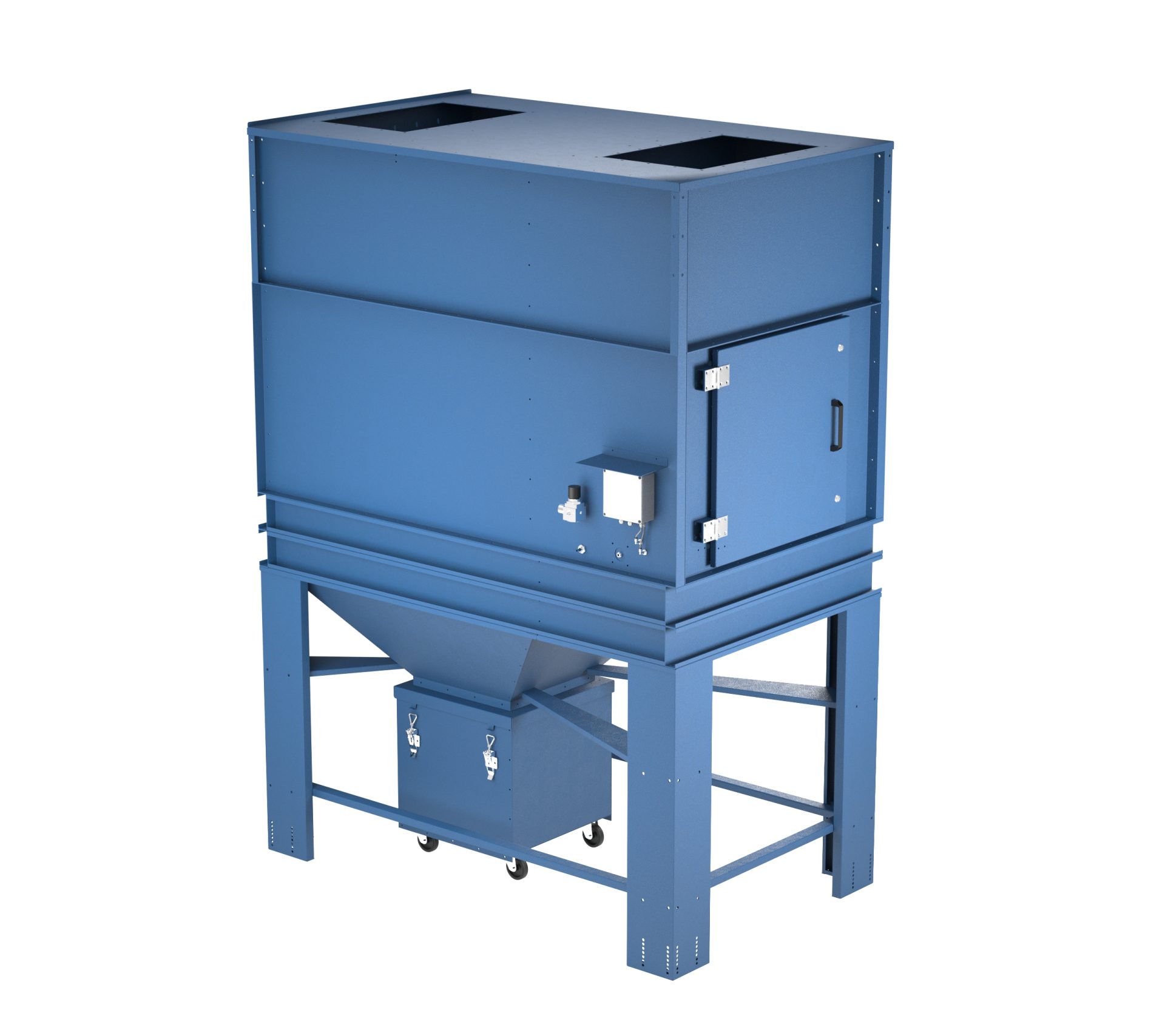

Filter Systems – Fec Or

FEC OR are the horizontal cartridges filters, designed for several types of industries and applications.

FEC OR series could handle massive airflow up to 85.000 m3/h.

These filters are provided with a plenum chamber, designed to create a first separation of heavier dust, allowing high filtration efficiency.

Reverse jet cleaning by differential pressure gauge ensures a long life of filtering media.

The filters are designed for handling with a forklift and equipped with lifting hooks, for a quick and easy installation.

Technical Sheet

Standard Version Specifications:
  • Filtering surface from 40 to 1.764 m2
  • Reverse jet cleaning with differential pressure gauge
  • Collection bin 210 L
  • Maximum vacuum 5.000 Pa
  • Maximum temperature 80°C
Accessories:
  • Several filter media
  • Fan
  • Control panel or/with inverter
  • Bin balanced system
  • ATEX components zone 22 3D
  • Srew conveyor and rotary valve
  • Fire protection stystem



Materials and finish:
  • Galvanized metal sheet
  • Stainless steel
  • Painted



Applications:

food paper inerts woodworking machining  welding and cutting
