Filter Systems – Fec NV ATEX

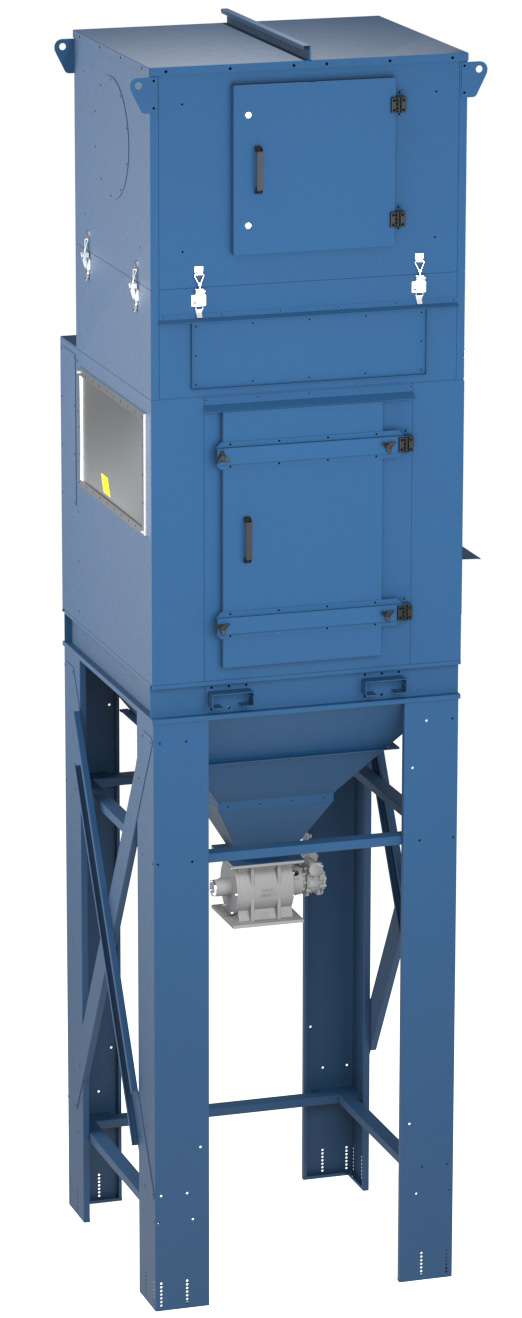

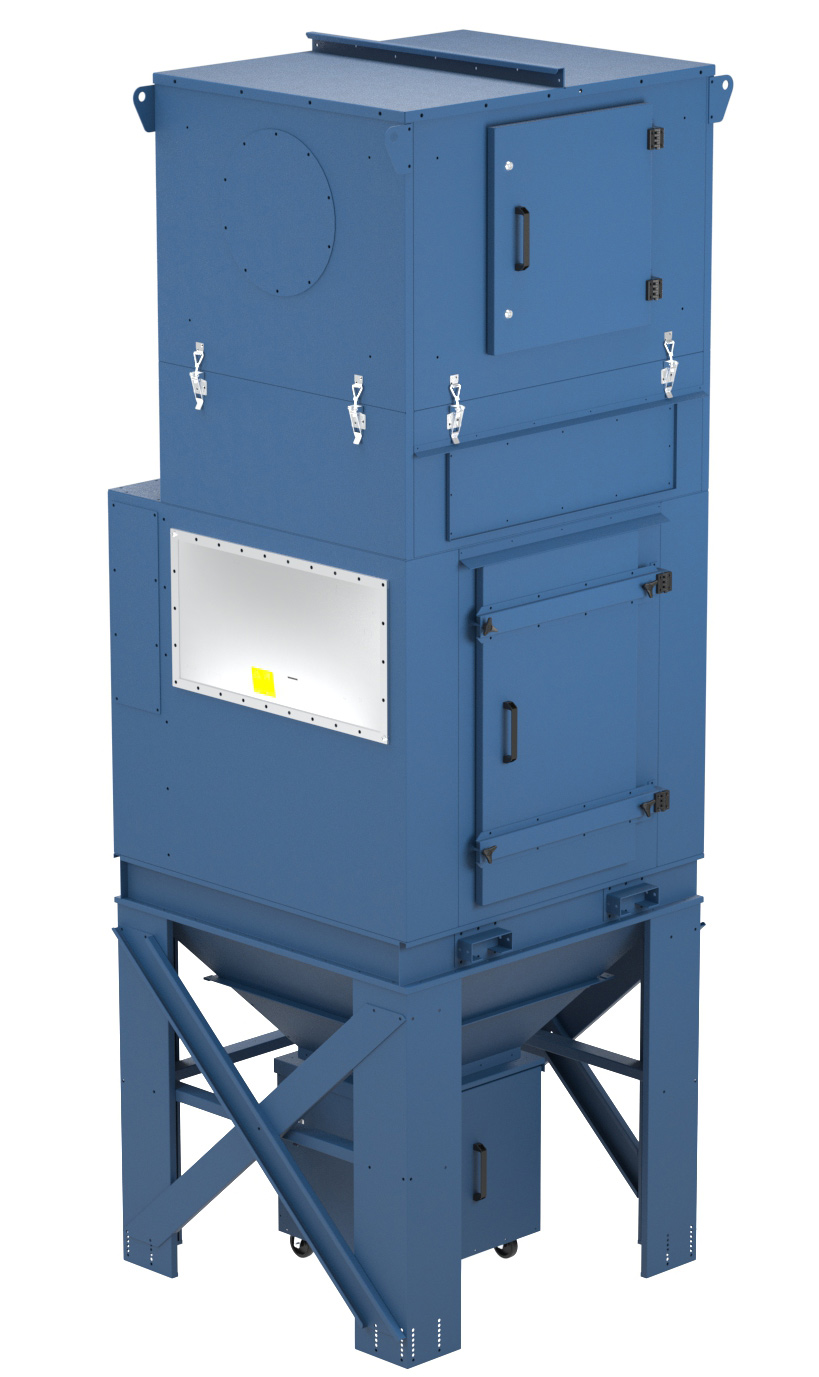

FEC NV ATEX are the vertical cartridges filters, designed to handle explosive dust ST1 class and certified ATEX for zone 22 3D, complete with extraction fan in a soundproofed box.

FEC NV ATEX are the upgrade for the standard serie, in addition to the classic FEC NV they are complete of:

  • Explosion relief panel/s place at a right distance from filtering elements as per normative UNI EN 14491
  • Reinforced hopper and reinforced collection bin
  • Access door to the filter cartridges complete of reinforces

ATEX certified components and antistatic elements installed on the filter.

Technical Sheet





Atex

Standard Version Specifications:
  • Filtering surface from 80 to 1.120 m2
  • ATEX certified fan
  • Reverse jet cleaning with differential pressure gauge ATEX certified
  • Explosion relief panel in compliance with UNI EN 14491
  • Collection bin 210 L
  • Maximum temperature 80°C
Accessories:
  • Several filter media
  • Control panel or/with inverter
  • Rotary valve certified ATEX
  • Explosion relief valve with no flame escape certified ATEX
  • Explosion vents
  • Fire protection system



Materials and finish:
  • Galvanized metal sheet
  • Stainless steel
  • Painted



Applications:

food woodworking inerts  paper machining welding and cutting

• Explosive dust ST1
• Atex Zone 22 3D
