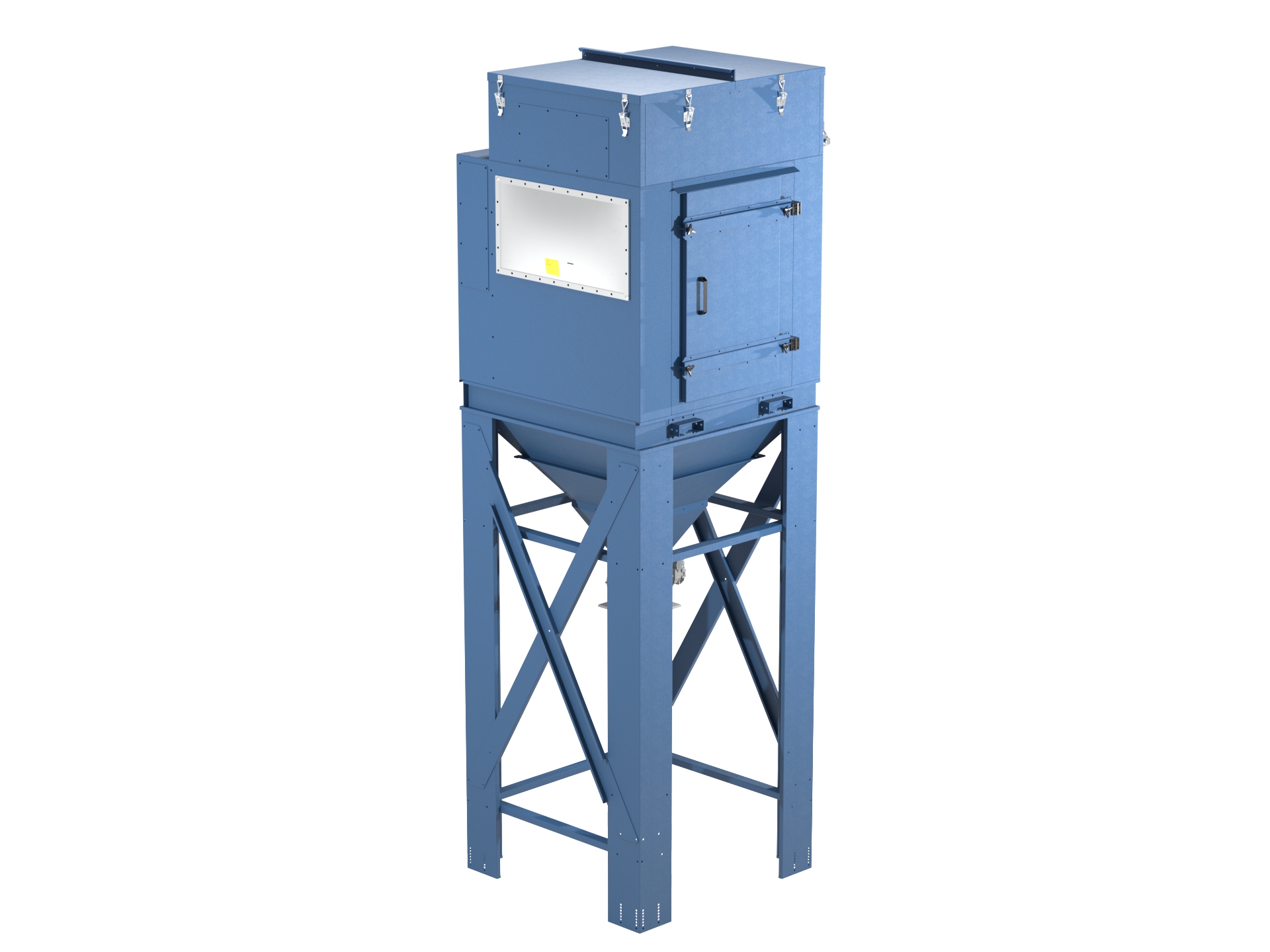

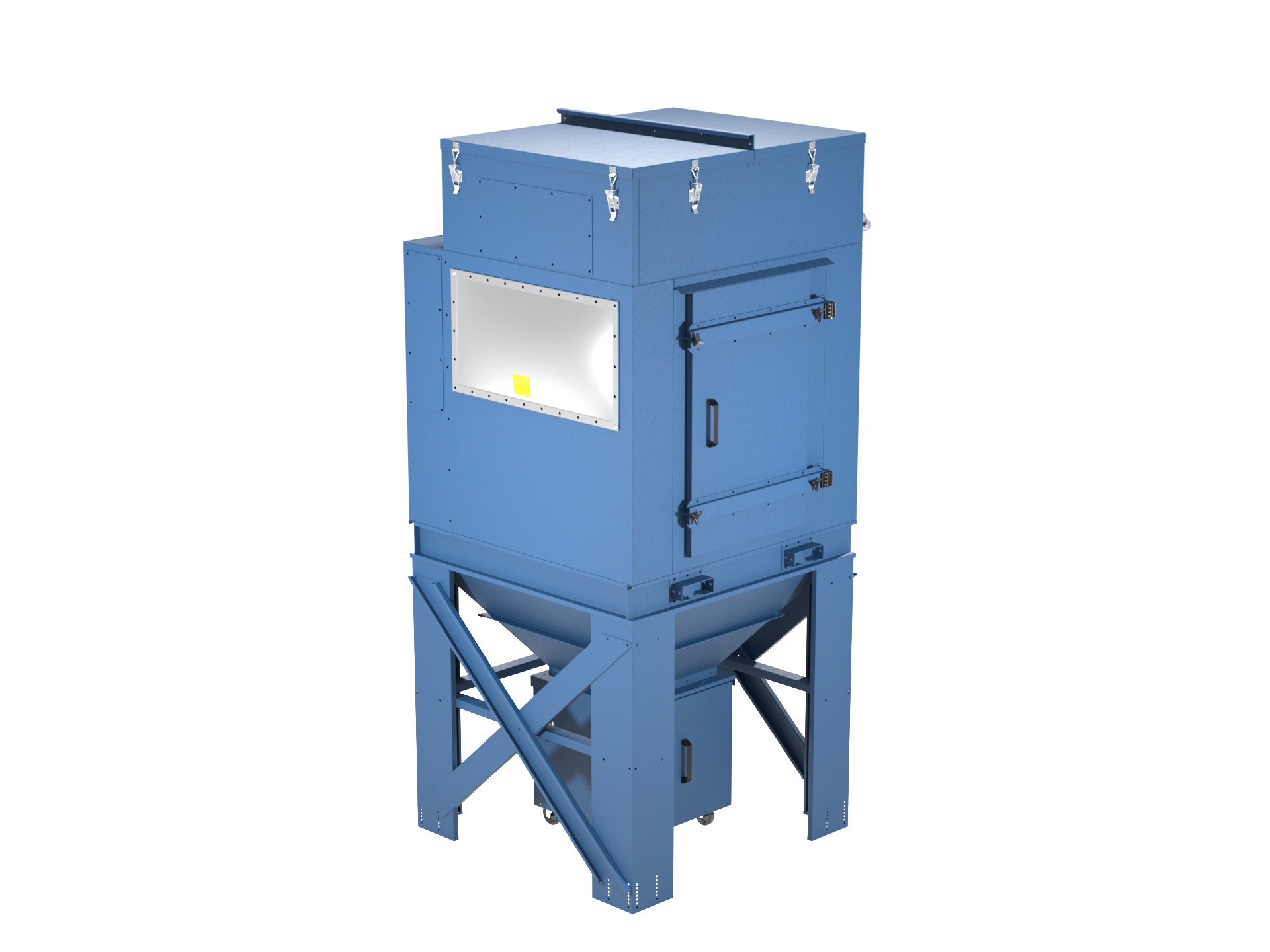

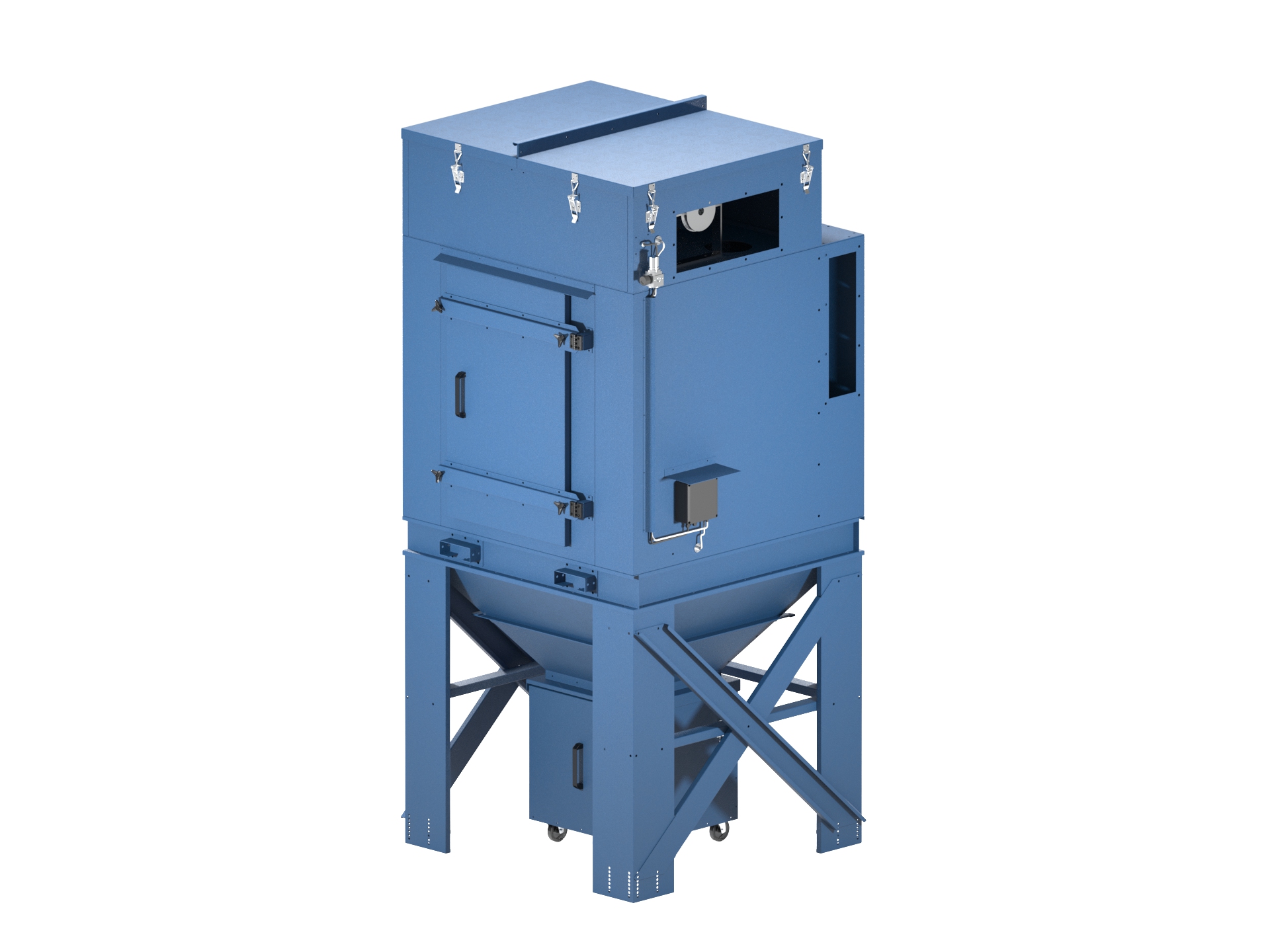

Filer Systems – Fec N ATEX

FEC N ATEX are the vertical cartridges filters, designed to handle explosive dust ST1 class and certified ATEX for zone 22 3D.

FEC N ATEX are the upgrade for the non-explosive dust series, in addition to the classic FEC N are complete of:

  • Explosion relief panel/s place at a right distance from filter element as per normative UNI EN 14491
  • Reinforce hopper and collection binAccess door to the filter cartridges complete of reinforces

Components installed on the filter certified ATEX and antistatic elements.

Technical Sheet





Atex

Standard Version Specifications:
  • Filtering surface from 80 to 1.120 m2 in antistatic polyester
  • Reverse jet cleaning with differential pressure gauge ATEX certified
  • Collection bin 210 L
  • Maximum vacuum 3.800 Pa
  • Maximum temperature 80°C
Accessories:
  • Several filter media
  • ATEX certified fan
  • Control panel or/with inverter
  • Rotary valve certified ATEX
  • Explosion relief valve with no flame escape certified ATEX
  • Explosion vents
  • Fire protection system



Materials and finish:
  • Galvanized metal sheet
  • Stainless steel
  • Painted



Applications:

foodwoodworkinginertspapermachiningwelding and cutting
• Explosive dust ST1
• Atex Zone 22 3D
