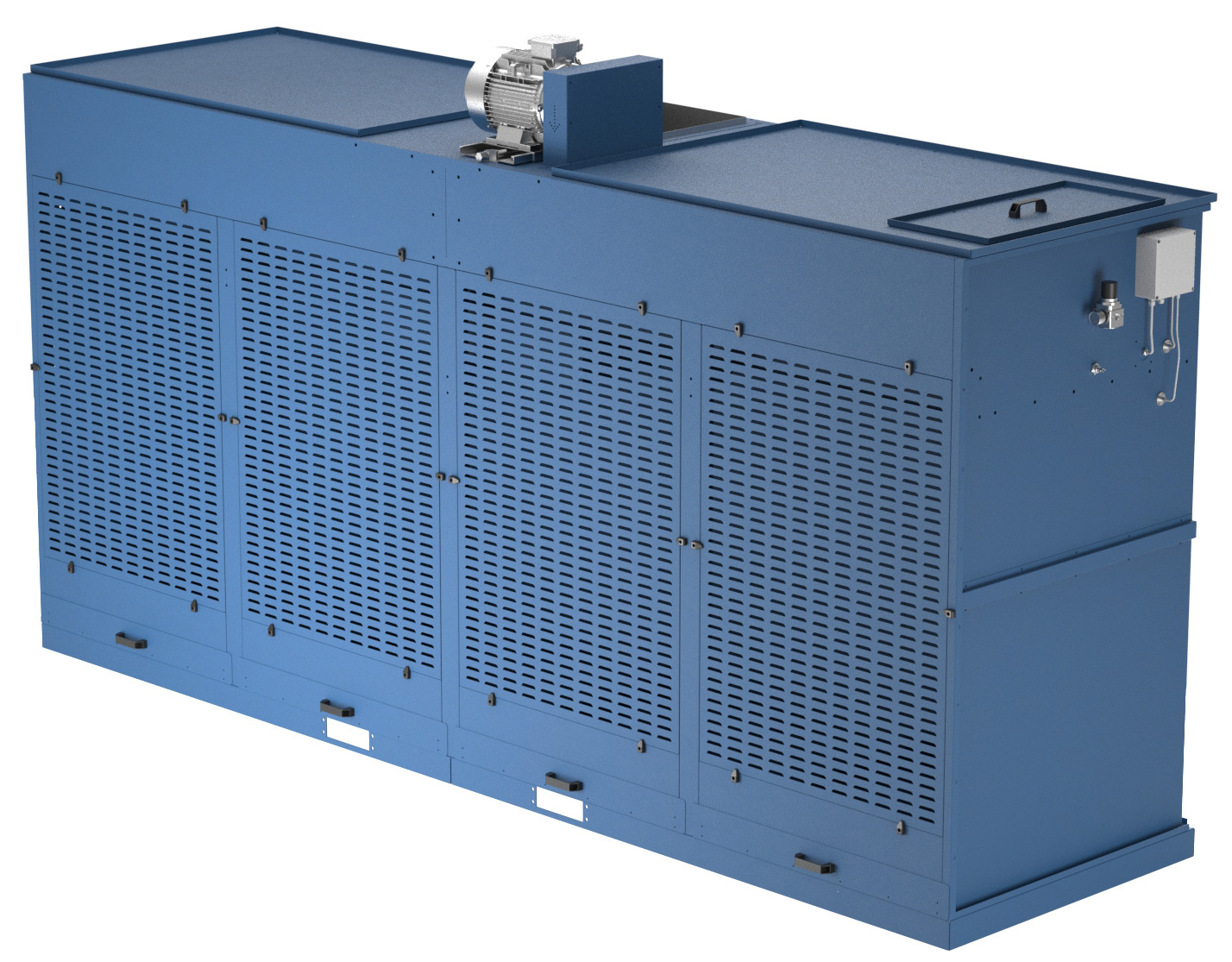

Extraction Booths – Cc

CC are the series of extraction booths with cartridges.

These booths are studied for capture a great amount of dust, thanks to the special extraction front realized.

Reverse jet cleaningby differential pressure gauge ensures a long life of filtering media.

All the booths are provided with an inlet belt drive fan, for guarantee high performance on all the extraction surface.

Each booth have collection drawers for the dust extracted.

The CC are designed for handling with a forklift for a quick and easy installation.

Technical Sheet

Standard Version Specifications:
  • Length from 2 to 6 meters
  • Extraction fan
  • Reverse jet cleaning with differential pressure gauge
  • Collection drawers
  • Max. temperature 80°C
Accessories:
  • Control panel with/or inverter
  • Lights
  • HEPA cartridges
  • Spark trap
  • Silencer on the outlet
  • Extension side panels and roof
  • ATEX components zone 22 3D



Materials and finish:
  • Galvanized metal sheet
  • Stainless steel
  • Painted



Applications:

inerts plastic welding and cutting
